Product Range

Steam boiler
Rated evaporation: lt/h - 35t/h
Rated working pressure: 0.7MPa - 2.5MPa

Hot water boiler
Rated thermal power: 0.7MW - 58MW
Specific parameters are shown in Table3

Structural features of this series of products

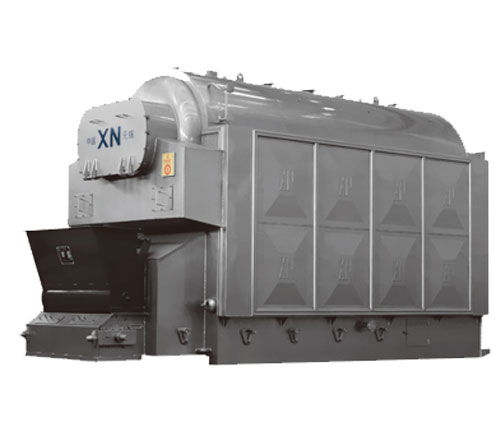

• The single drum water pipe boiler consists the boiler on the top and the chain grate down and can be assembled and leave the factory as a whole.
• The boiler body is vertically arranged as a single drum. The drum and the water wall tubes on both sides constitute the radiation heating surface of the furnace, and the convective heating surface is composed of the water pipes and the tube bundles on both sides.
• The spiral smoke pipe in the pot drum constitutes the convective heating surface of the fire pipe, and the tube sheet adopts the low stress non-stretching arch tube sheet.
• The boiler adopts coal-fired chain grate.

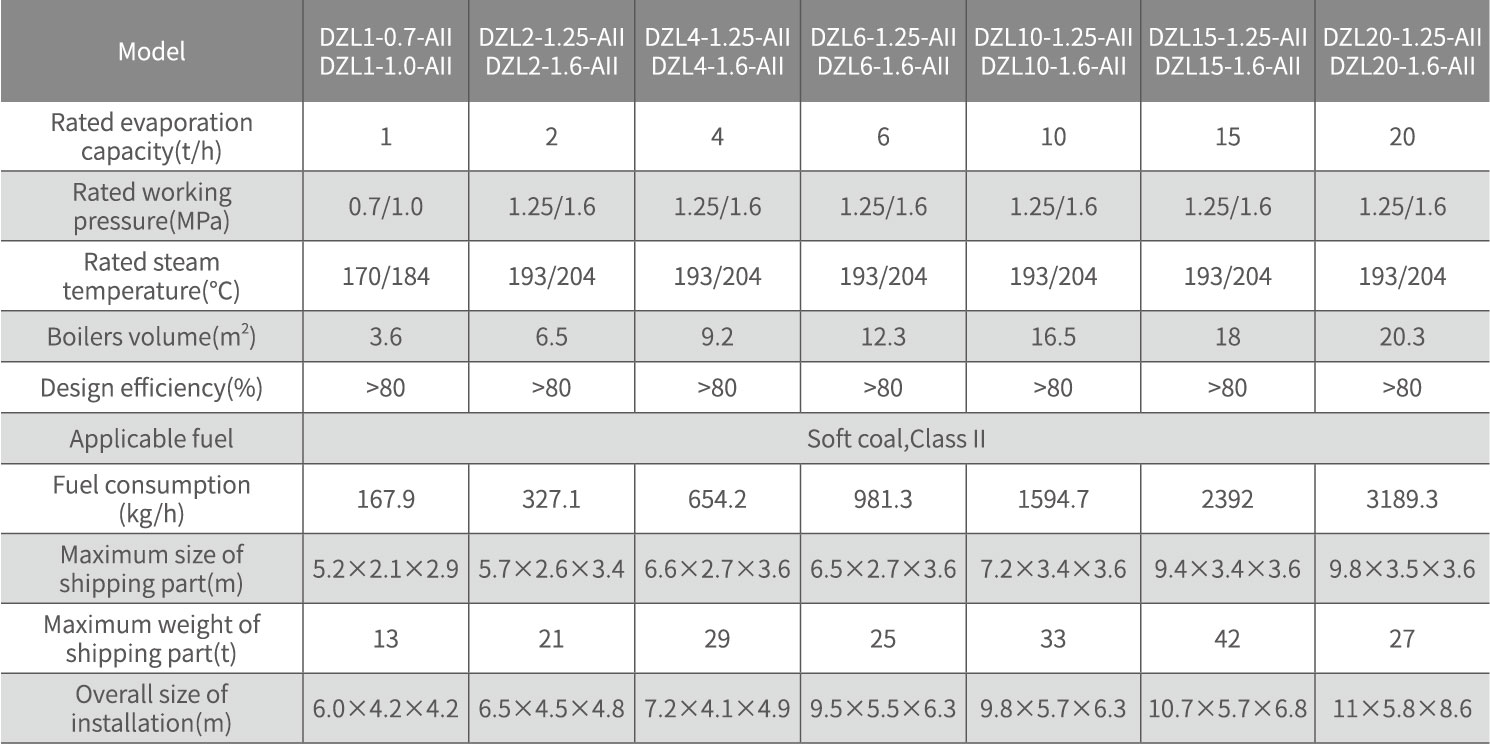

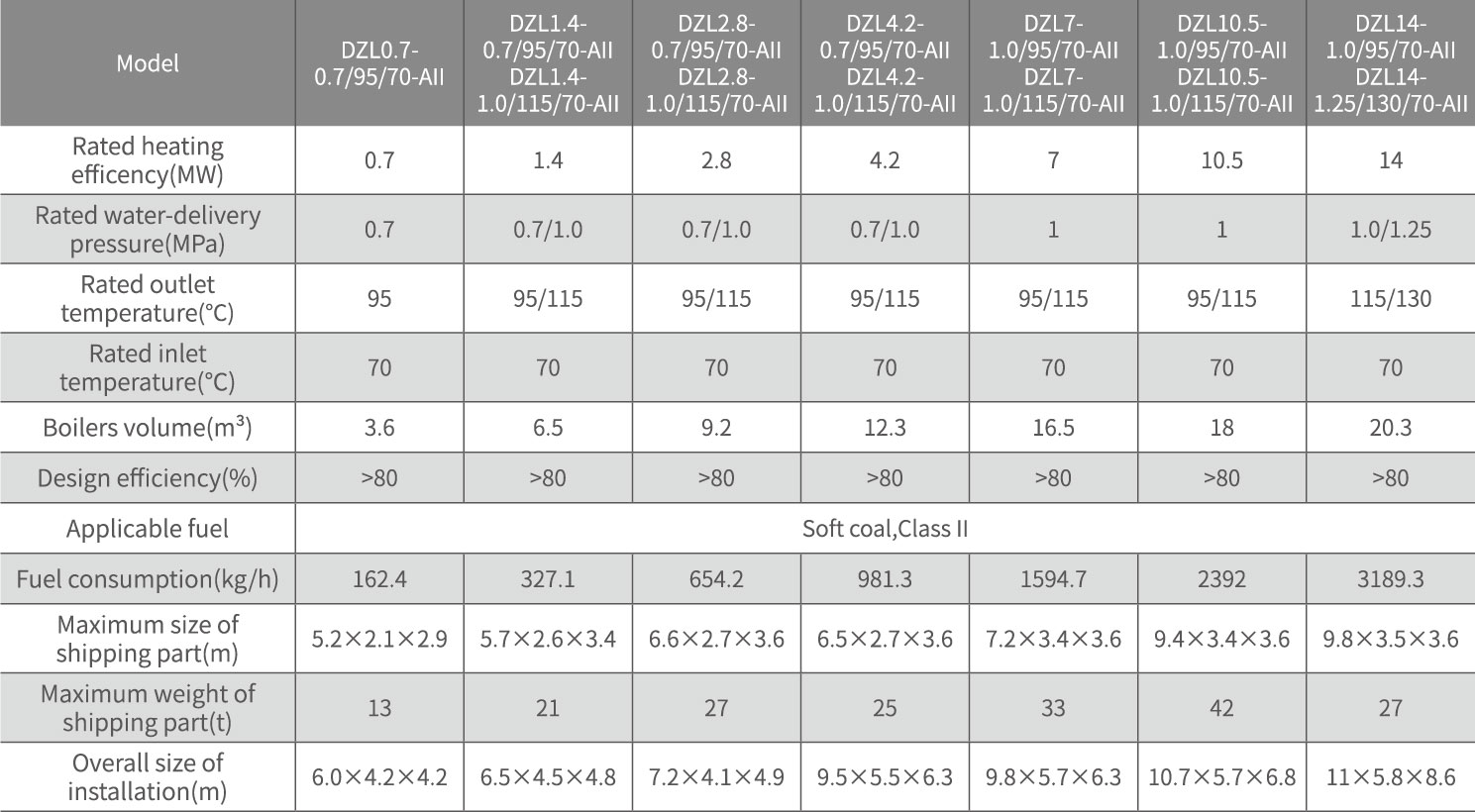

Parameters Table 3
